Fully Automatic Laminator ∨
-
SW-820

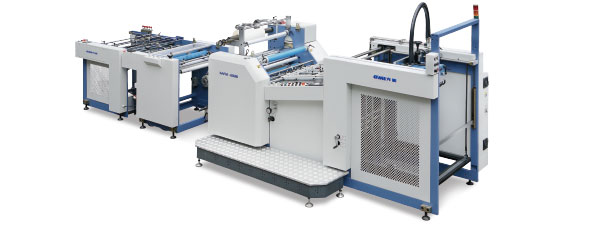

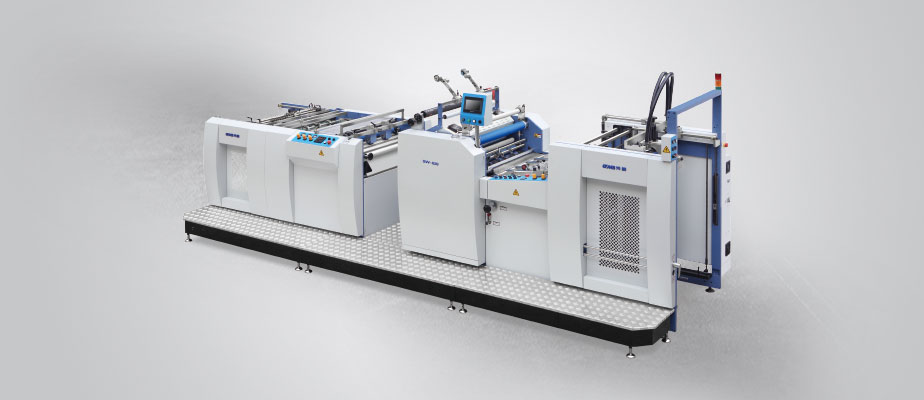

Fully Automatic Laminator
Instant Electromagnetic Heater
heat up time shorten to 90 seconds,
accurate temperature control:±1℃
|
Instant Electromagnetic Heater heat up time shorten to 90 seconds, accurate temperature control:±1℃ |
Auto FeederThis machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine
Side Lay RegulatorThe Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.
Electromagnetic HeaterEquipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.
Human-computer interfaceA user-friendly interface system with a colour touchscreen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.
Separation systemPneumatic separation system to separate the paper stably and quickly.
Corrugrated DeliveryA corrugatted delivery system collects paper easily.
Anti-curvature DeviceThe machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during the lamination process.
Automatic StackerAutomatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets
Film LoaderOperating the film loader is easy and efficient to use.
|
Max Paper Size Min Paper Size |
820x1050 mm 300x300 mm |
| Paper Thickness | 100-500 g/m2 |
| Laminating Speed | 0-65 m/min |
| Gross Power | 21 kw |
|
Weight Overall Dimensions |
4000 kg 6200x2000x1900 mm |
|
Pre-stacker |
1850mm |
